The 1:80 Fall Rule: Navigating NHBC Standards 2026 for Driveway Safety

Steve — Fri, 22 May 2026 09:26:23 +0000

The 1:80 fall rule means a driveway should drop 1 unit vertically for every 80 units horizontally, or 1.25%. On site, this ensures rainwater flows away from buildings, garage thresholds and walking routes. Under the NHBC Standards 2026 expectations for drives, paths and landscaping, fall, base and drainage are critical safety requirements. They reduce ponding, winter slip risk, damp risk and avoidable surface failure.

What does the 1:80 fall rule mean for a driveway?

The 1:80 fall rule means every metre of driveway length should provide around 12.5 mm of level change. The fall should be planned before excavation, not corrected afterwards with a thin surface layer.

Driveway length	Fall ratio	Approximate drop
3 m	1:80	37.5 mm
5 m	1:80	62.5 mm
10 m	1:80	125 mm
15 m	1:80	187.5 mm

A compliant fall should direct water to a suitable drainage point, permeable area, soakaway or SuDS-ready build-up. It should not send water towards the house, across a public footway or onto a neighbouring plot.

Why does NHBC Standards put driveway drainage under closer scrutiny?

NHBC’s 2026 standards apply to NHBC-registered homes where foundations are begun on or after 1 January 2026. It defines technical requirements and performance standards for new homes registered with NHBC.

Drainage is therefore a warranty-quality issue, not just a visual one. There needs to be a minimum 1:80 fall for paved driveways and paths, with paved surfaces draining away from the home or to a suitable collection point.

A safe driveway is not judged only by the surface you can see. The fall, base and drainage route below it decide whether water moves, pools or causes failure.

How should a driveway fall gradient be planned before installation?

A driveway fall gradient should be designed from the finished level backwards. First decide where the water should go. Then confirm whether the surface and sub-base allow that route to work during heavy rain.

The correct sequence is:

Establish finished levels at the house, garage, pavement edge and driveway entrance.
Keep paved surfaces safely below damp proof course level where relevant.
Set the direction of fall away from walls and thresholds wherever possible.
Confirm whether water will drain through a permeable system, into a channel drain or into a soakaway.
Build the sub-base to the same drainage logic as the finished surface.

A driveway can look clean on completion but fail once rainfall exposes shallow areas, trapped water or poor outfalls.

How does a SuDS compliant driveway support the 1:80 fall rule?

A SuDS compliant driveway helps manage rainwater within the site rather than pushing extra run-off into public drainage. Permeable surfacing, soakaways and rain gardens can reduce rainfall run-off from paved front gardens. New or replacement front garden driveways of any size generally do not need planning permission where permeable surfacing is used or water drains naturally to a lawn or border.

For resin systems, the surface is only part of the answer. Resin bound surfacing is porous when installed over a suitable sub-base, such as open-textured asphalt or no-fines concrete. Where the base needs preparation, groundworks and drainage preparation should cover excavation, sub-base formation, soakaways, manholes and drainage channels.

What are the common driveway drainage risks on new build sites?

New build driveways often fail at the details. The most common risks are small design errors that become expensive once the surface is in use.

Fall is too shallow, inconsistent or interrupted by a low spot.

Water runs towards the garage, front door or wall line.

A decorative permeable surface is laid over a base that does not drain.

Channel drains are installed but not connected to a suitable outfall.

Inspection covers, thresholds and edging interrupt the water route.

The surface is designed for foot traffic but receives repeated vehicle turning.

An open-textured asphalt base can be used below resin bound surfaces where the build-up is designed for drainage.

For pedestrian areas where reduced excavation is important, the LimePath GeoSuDS UV provides a permeable resin bound system with a geotextile and stabilisation layer.

What should you check before choosing a driveway surface?

Before choosing a finish, check the technical route from rain landing on the surface to rain leaving the surface safely.

Check	Why it matters
Is the fall measurable?	Confirms water can move rather than sit.
Is the base permeable or drained?	Prevents trapped water under the surface.
Is the surface suitable for vehicle use?	Avoids scuffing, rutting and wear.
Are thresholds protected?	Reduces damp and water ingress risk.
Is maintenance realistic?	Keeps drains, channels and pores clear.

Make the fall part of the design, not an afterthought

A 1:80 fall gives water direction. A suitable sub-base gives water somewhere to go. A SuDS compliant surface helps reduce standing water and supports better site drainage.

Speak to Limegate about safe driveway drainage

Founded in 2013, we work with commercial clients, architects and principal contractors across the UK, with experience on public spaces, heritage sites and large-scale surfacing projects. Driveway safety is solved by correct levels, materials and installation.

Planning a new driveway or checking a specification? Call us on 01959 546 208 or email info@limegate.co.uk to discuss the safest surface, fall and drainage build-up for your project.

Frequently Asked Questions

What is the 1:80 fall rule?

The 1:80 fall rule means a surface drops 1 unit vertically for every 80 units horizontally. It equals 1.25%, or about 12.5 mm per metre.

Is 1:80 enough fall for a driveway?

A 1:80 fall is commonly used as a minimum driveway gradient where the surface and drainage route are properly designed.

Does a resin bound driveway still need a fall?

Yes. Resin bound surfacing is permeable when installed over a suitable permeable base, but it still needs correct falls and drainage detailing.

Do I need planning permission for a new driveway?

A permeable front garden driveway, or one that drains naturally to a lawn or border, will usually avoid the planning issue that applies to impermeable surfaces over 5 square metres.

What causes standing water on a new driveway?

Standing water is usually caused by poor falls, low spots, blocked drainage, an unsuitable base or the wrong water route.

The post The 1:80 Fall Rule: Navigating NHBC Standards 2026 for Driveway Safety appeared first on Limegate Specialist Surfacing.

Does a Resin Bound Driveway Need Planning Permission? The Complete 2026 UK Guide

Steve — Fri, 22 May 2026 09:15:55 +0000

Most homeowners want to avoid planning issues after installing a new driveway. The good news is that resin bound driveway planning permission in the UK in 2026 is usually straightforward: the key factor is drainage. A properly designed resin bound surface is porous, so rainwater can pass through the surface rather than running into the road, pavement or public drains.

If the driveway is in front of your home and covers more than 5m², planning permission is generally needed for traditional impermeable surfacing unless the water drains to a permeable area within your property. A permeable resin bound system can often avoid the need for planning permission, provided the base and drainage design are right.

For clear advice before you commit to a specification, call Limegate on 01959 546 208.

The short answer: Planning permission depends on drainage

A resin bound driveway is different from sealed concrete or standard tarmac because the aggregate and resin are mixed together to create an open, porous finish. When installed over a suitable permeable base, water can drain through the surface and into the ground or a designed drainage layer.

The rule homeowners often miss is that permeability is not only about the top layer. If resin bound surfacing is laid over an impermeable base without a drainage route, the finished driveway may not perform as a permeable system. For planning purposes, the full build-up matters.

Why SuDS compliant driveway rules matter in 2026

A SuDS compliant driveway is designed to manage surface water close to where rain falls. This matters because more front gardens are being converted into parking areas, while heavier rainfall places more pressure on drains.

UK guidance favours permeable surfacing because it reduces run-off, limits standing water and helps rainwater soak away more naturally. That is why resin bound surfacing, permeable block paving, porous asphalt and gravel are commonly discussed when homeowners want to stay within permitted development rules.

A compliant driveway is not just a surface choice. It is a drainage decision, and the base beneath the resin matters as much as the finish you see.

Resin bound vs resin bonded: Which surface helps with planning permission?

The difference between resin bound vs resin bonded surfacing is critical. The names sound similar, but they do not manage water in the same way.

Surface type	How it is installed	Drainage position	Planning relevance
Resin bound	Aggregate is mixed with resin, then hand-laid	Porous over a suitable base	Often suitable for permeable driveway requirements
Resin bonded	Resin is applied to a base, then aggregate is scattered on top	Generally not fully porous	May need separate drainage or planning checks
Standard concrete or sealed tarmac	Solid impermeable surface	Water runs off unless directed elsewhere	Permission may be needed over 5m² in front gardens

Where planning permission is the concern, do not choose by appearance alone. Ask whether the surface, sub-base, falls and drainage route work together as one permeable system.

When does a resin bound driveway still need planning permission?

A permeable driveway does not remove every planning issue. You may still need advice or permission where:

The surface is more than 5m² and water cannot drain through or to a permeable area

The driveway affects a listed building, conservation area or article 4 direction

Major level changes, retaining structures or embanking are needed

A new access crosses a pavement and needs a dropped kerb

The road is classified, or the highways authority applies specific crossover rules

The property is a flat, maisonette or commercial premises rather than a house.

Dropped kerb permission is separate from the driveway surface. You may have a compliant resin bound system and still need approval to create or widen vehicle access.

How to check your front garden driveway before installation

Before any work starts, check four points.

Is the driveway between the front wall of the house and the highway?
Will the new or replacement hard surface exceed 5m²?
Will the full system be permeable, including the base?
Will rainwater stay within the property boundary and drain naturally?

If the answer to the first two questions is yes, the drainage design becomes the deciding factor. A well-designed resin bound driveway should show how water is handled before installation begins, not after puddling appears.

Limegate’s resin bound surfacing is designed for porous, slip-resistant and low-maintenance use across driveways, paths, access roads and public spaces. For homeowners in the South East, Limegate also provides resin driveways in Kent, with SuDS compliance considered from the start.

What a compliant resin bound driveway should include

A compliant specification should include the right surface, base and water route. Limegate’s LimeBound UV Stable Resin Bound System is a permeable system for pedestrian and light vehicle traffic, while LimePath GeoSuDS UV supports high permeability in pedestrian areas where a no-dig style build-up may be suitable.

For driveways, the key details are practical:

A suitable open-textured or permeable sub-base

Correct edging to retain and protect the surface

Falls that move water away from the house

Drainage channels, soakaways or manholes where needed

Uv-stable resin for long-term colour performance

Clear aftercare guidance for maintenance.

Where preparation is needed, SuDS-compliant groundworks can include excavation, sub-base preparation, soakaways, manholes and draining channels.

Planning permission for resin driveways across the UK

For England, official guidance says planning permission is not needed for a new or replacement driveway of any size if it uses permeable surfacing or directs rainwater to a lawn or border to drain naturally. If more than 5m² is covered with traditional impermeable surfacing and water is not directed to a permeable area, planning permission is needed.

Wales follows a similar practical approach: front garden hard surfaces should use permeable or porous materials, or direct run-off from impermeable surfaces to a permeable or porous surface. Scotland and Northern Ireland have separate planning systems, so homeowners should check local authority guidance before work starts.

Our practical recommendation

If you want the least complicated route, specify the driveway as a complete permeable system, not just a decorative surface. That means resin bound surfacing over a suitable permeable base, with water draining into the ground or a designed drainage point within your boundary.

Limegate was founded in 2013 and brings more than 80 years’ collective resurfacing experience to domestic and commercial projects. The team works across London, Kent, Surrey, Sussex, Essex and wider UK locations, with CHAS accreditation, active FeRFA membership, manufacturer approved contractor status and a strong record across public spaces, heritage sites, national landmarks and large domestic driveways.

Get the drainage right before you choose the finish

A resin bound driveway will not usually need planning permission when it is genuinely permeable and installed with the correct base and drainage design. The risk comes from assuming the surface alone is enough. In 2026, the safest approach is to check the size, location, base, water route and access requirements before installation starts.

For tailored guidance, call Limegate on 01959 546 208 or email info@limegate.co.uk. Share your driveway size, photos and location, and the team can advise on the right specification before work begins.

Frequently Asked Questions

Does a resin bound driveway need planning permission?

Usually no, if it is permeable and rainwater drains through the surface or to a permeable area within your property.

Does the 5m² rule apply to resin bound driveways?

The 5m² rule matters mainly for front garden hard surfacing. Above that size, impermeable surfaces usually need permission unless drainage is provided.

Is resin bound always permeable?

The surface is porous, but the full driveway is only permeable if the base and drainage route allow water to pass through or drain correctly.

Do I need permission for a dropped kerb?

Often you need highways approval, and sometimes planning permission, especially on classified roads or in conservation areas.

The post Does a Resin Bound Driveway Need Planning Permission? The Complete 2026 UK Guide appeared first on Limegate Specialist Surfacing.

Commercial Resin Bound Surface Maintenance

Steve — Wed, 11 Mar 2026 11:29:36 +0000

The transition from winter to spring is one of the most critical periods for exterior surface care. Cold temperatures, heavy rainfall, frost and increased foot traffic can take a toll on commercial resin bound installations. Without proper attention, minor seasonal wear can quickly develop into more costly surface issues.

Effective commercial resin bound surface maintenance during this transitional period ensures your surfaces remain safe, visually appealing and structurally sound. For commercial properties such as retail parks, office complexes, schools and healthcare facilities, maintaining resin bound surfaces is not just about appearance. It directly impacts safety, durability and long-term investment protection.

Protect your commercial resin bound surfaces this season. Proactive winter-to-spring maintenance keeps your property safe, compliant and looking professional all year round.

Why Winter Causes Damage to Resin Bound Surfaces

Resin bound systems are designed to be durable and permeable. However, winter conditions can still present challenges. Freeze-thaw cycles are particularly damaging. When water enters small surface gaps and freezes, it expands. Repeated cycles of freezing and thawing can stress the structure over time.

Commercial sites often experience heavier footfall and vehicle movement during winter months. Mud, grit and debris accumulate on the surface. De-icing products may also leave residue that affects appearance.

Step 1: Conduct a Thorough Surface Inspection

The first step in effective maintenance is a detailed visual inspection. Early identification prevents small issues from escalating.

Check for:

Surface cracking or movement
Loose aggregate areas
Drainage blockages
Moss or algae growth
Edge restraint stability

Spring inspections allow property managers to address concerns before peak seasonal usage begins. For commercial properties, safety compliance and slip resistance must always remain a priority.

Routine inspections are a core element of responsible commercial resin bound surface maintenance.

Step 2: Remove Winter Debris and Organic Build-Up

Leaves, soil, grit and organic matter often accumulate during winter. If left untreated, this build-up can encourage moss growth and restrict drainage performance.

Resin bound surfaces are permeable, meaning water drains through the system. However, blocked pores reduce permeability and may cause surface water pooling.

Spring cleaning should include:

Mechanical brushing
Light pressure washing
Removal of compacted debris
Clearing surrounding drainage channels

Care must be taken not to use excessive pressure, as this can damage the resin matrix.

Step 3: Address Moss and Algae Growth

Shaded areas, particularly around building perimeters or tree-lined car parks, are prone to moss and algae development.

These growths can:

Reduce slip resistance
Cause surface staining
Retain moisture
Accelerate surface wear

Applying an appropriate biocide treatment in early spring helps prevent regrowth during warmer months.

Maintaining slip resistance is essential for commercial compliance. Proactive algae control strengthens overall commercial resin bound surface maintenance strategies.

Step 4: Review Drainage Performance

One of the key advantages of resin bound surfacing is permeability. However, this benefit relies on the system remaining free from obstruction.

After winter, inspect:

Drainage outlets
Surface water flow patterns
Adjacent gullies
Edging systems

If water is not draining efficiently, underlying layers may require professional assessment.

Step 5: Check for Structural Movement

Commercial properties often experience high vehicle loads. Delivery vehicles, service vans and customer traffic place stress on surface areas.

After winter, look for:

Surface depressions
Minor cracking
Edge separation
Movement near expansion joints

Early intervention prevents minor surface movement from expanding into larger structural concerns.

The Importance of Professional Assessment

While routine cleaning can be handled in-house, professional inspections provide a deeper assessment of structural integrity.

Specialists can evaluate:

Resin bond strength
Sub-base condition
Long-term wear patterns
Potential future risk areas

Commercial properties have legal responsibilities to maintain safe environments. Professional evaluation reduces liability risks and ensures compliance with safety standards.

Preparing for Increased Spring and Summer Traffic

As temperatures rise, commercial sites often experience increased usage. Outdoor seating areas, car parks, walkways and public entrances see higher activity levels.

Spring maintenance ensures:

Slip resistance is optimised
Surfaces remain visually clean
Drainage functions effectively
The property maintains a professional appearance

A well-maintained resin bound surface enhances first impressions for visitors and clients.

Common Mistakes to Avoid

During the winter-to-spring transition, avoid:

Using harsh chemical cleaners
Applying excessive pressure washing
Ignoring small cracks
Allowing debris to build up
Delaying inspections

These mistakes can reduce surface lifespan and increase long-term repair requirements.

Proper maintenance techniques preserve the integrity of the resin and aggregate structure.

Long-Term Maintenance Planning

Commercial property maintenance should not be reactive. Establishing a structured maintenance schedule ensures consistency throughout the year.

A seasonal plan may include:

Quarterly inspections
Biannual cleaning
Annual professional assessment
Ongoing monitoring of high-traffic areas

By incorporating commercial resin bound surface maintenance into broader property management planning, facilities teams can extend surface lifespan and reduce unexpected repair disruptions.

Environmental Considerations

Resin bound systems are valued for their permeability and sustainable drainage capabilities. Maintaining this performance supports environmental compliance and local planning standards.

Blocked or neglected surfaces may compromise sustainable drainage systems, particularly during heavy spring rainfall.

Regular maintenance protects not only the surface itself but also surrounding infrastructure.

Final Thoughts: Protecting Your Investment Through Seasonal Care

The shift from winter to spring is a crucial maintenance window for commercial properties. Cold weather stress, debris accumulation and moisture exposure can gradually affect resin bound installations.

Proactive commercial resin bound surface maintenance ensures surfaces remain safe, compliant and visually appealing as warmer months approach.

Through inspection, cleaning, moss treatment and drainage review, commercial property managers can protect their investment and maintain high standards of safety and presentation.

Seasonal care is not simply cosmetic. It is a practical strategy for extending durability, preventing structural damage and maintaining professional commercial environments year-round.

The post Commercial Resin Bound Surface Maintenance appeared first on Limegate Specialist Surfacing.

Playground Safety Surfacing: Understanding 2026 CPSC Updates and Critical Fall Height Requirements

Steve — Tue, 17 Feb 2026 08:10:49 +0000

Creating safer play environments is central to everything we do at Limegate. Schools, local authorities and contractors across the UK continue to prioritise safer playgrounds, and understanding today’s playground safety surfacing requirements is essential before any new installation or refurbishment. Updated guidance from the Consumer Product Safety Commission (CPSC), together with established British and European standards, places stronger emphasis on measurable fall protection, correct testing and long-term maintenance.

By aligning design with proven impact attenuation methods and certified materials, we help clients reduce risk while delivering surfaces that last. If you would like practical advice or a site survey, call us on 01959 546 208 or email info@limegate.co.uk to speak with our team.

We design and install tested, compliant playground surfaces that protect children, simplify inspections and deliver dependable performance for years. From small nursery upgrades to large public parks, we provide safe, attractive systems that meet modern standards without overcomplicating your project.

Why Modern Playground Safety Standards Matter More Than Ever

Playgrounds should inspire confidence and movement. Climbing, balancing and jumping all support healthy development. Yet falls remain the leading cause of playground injuries.

For this reason, well-defined requirements for playground surfacing exist. These reduce impact forces and help prevent serious head injuries. Today’s standards focus on performance, not simply material choice. A surface must prove that it can absorb shock effectively. Thickness alone is no longer enough.

For schools and councils, compliance supports safeguarding responsibilities, reduces liability and demonstrates a duty of care. Most importantly, it keeps children safe during everyday play.

Understanding The 2026 CPSC Influence on Global Best Practice

Although the CPSC regulates products in the United States, its technical research has influenced playground safety worldwide. Many testing approaches adopted in the UK and Europe mirror the same scientific principles.

Recent updates and clarifications include:

Evidence-Based Impact Testing

Surfaces must achieve verified results using head injury criteria (HIC) testing. This laboratory process measures how effectively a surface reduces impact forces.

Clear Matching Between Equipment and Surface Depth

The height of the equipment determines the level of protection required. Higher platforms need greater shock absorption. Generic solutions are discouraged.

Greater Focus on Ongoing Maintenance

All surfaces deteriorate over time. Weather, heavy use and compaction can reduce performance. Routine inspections are now considered part of compliance.

Within the UK, these principles align closely with BS EN 1177. We explore this in more detail in our guide to BS EN 1177 playground surfacing standards.

What Is Critical Fall Height and Why It Matters

Critical fall height (CFH) refers to the maximum height from which a fall can occur while the surface still limits the risk of serious head injury.

It is determined using controlled drop testing. A weighted headform is released from increasing heights onto the surface. Sensors measure impact levels until safety limits are reached. The highest safe measurement becomes the certified rating.

This ensures that:

Equipment height directly informs surface depth
Protection is based on data, not guesswork
Installations remain consistent and defensible during audits

Understanding critical fall height testing allows specifiers to select materials with confidence and ensures each play feature is properly protected.

Types Of Compliant Playground Surfacing Systems

Different environments call for different solutions. The best choice depends on budget, aesthetics, drainage and expected footfall.

Wet Pour Rubber (EPDM)

A seamless, resilient system commonly used in schools. EPDM offers reliable performance, easy maintenance and full accessibility for wheelchairs and pushchairs.

Bonded Rubber Mulch

Rubber mulch provides a natural appearance with strong shock absorption. It blends well into parks and landscaped settings while remaining cost effective.

Artificial Grass with Shock Pads

Delivers a grass-like finish with concealed cushioning layers beneath. Popular for multi-use areas where appearance matters as much as safety.

Rubber Tiles

Modular and practical. Individual tiles can be replaced if damaged, making them suitable for smaller or phased projects.

Through our playground surfacing installation services, we recommend systems that meet playground impact attenuation standards while remaining durable and easy to maintain.

Common Issues Found on Older Playgrounds

Older installations may not meet current expectations. Over time, we regularly identify:

Reduced Depth in Loose Fill

Bark, sand and similar materials settle and disperse. Protection gradually declines.

Inconsistent Patch Repairs

Small areas replaced without testing may create weak spots.

Poor Drainage

Standing water accelerates wear and increases slip risks.

Outdated Certification

Older surfaces may not satisfy modern playground surfacing compliance regulations.

Planned inspections and timely upgrades prevent these risks. Our playground maintenance and repair solutions help clients maintain safe, compliant spaces throughout the year.

How We Approach Projects Across The UK

Whether we are working on a school in Kent, a nursery in London or a park in the South East, we always consider the site context first. Ground conditions, drainage and usage patterns all influence design decisions.

Our process is straightforward and transparent:

Initial consultation and site survey
Equipment height assessment
Material selection and design
Certified rubber safety surfacing installation
Post-installation checks
Long-term maintenance guidance

This structured approach ensures every project meets safe surfacing requirements while remaining attractive and cost effective.

When Should You Upgrade Your Surface?

You may need refurbishment if you notice:

Cracks or worn areas
Compaction or reduced depth
Drainage issues
Changes to equipment height
Missing documentation or testing records

Proactive upgrades are more economical than emergency repairs following an incident.

Final Thoughts: Safer Play Starts with the Right Surface

Compliant surfacing is not just a regulatory exercise. It directly protects children every day. By understanding today’s playground safety surfacing requirements, staying informed about testing methods and maintaining installations correctly, schools and councils can provide safer environments with confidence.

If you are planning improvements or need guidance, speak with us. We offer honest advice, certified systems and dependable workmanship.

Call 01959 546 208 or email at info@limegate.co.uk. Together, we can create safer, longer-lasting playgrounds for communities across the UK.

The post Playground Safety Surfacing: Understanding 2026 CPSC Updates and Critical Fall Height Requirements appeared first on Limegate Specialist Surfacing.

Resin Bound vs Traditional Paving: A 2026 Cost-Benefit Analysis for UK Businesses

Steve — Tue, 03 Feb 2026 14:26:39 +0000

When UK businesses are investing in outdoor surfaces, the choice between resin bound vs traditional paving is not just about looks or budget, it’s about long-term performance, compliance and operational practicality. At Limegate we’ve spent decades delivering high quality surfaces nationwide, pairing expertise with real world results on projects from national landmarks to commercial headquarters.

In this guide we’ll take you through a full 2026 cost-benefit analysis of resin bound and traditional paving options, helping you make an informed choice that balances budget, durability and business needs.

If you’d like to discuss a project or get expert advice, call us on 01959 546 208 or email info@limegate.co.uk.

Our experts at Limegate, we believe children’s play should be safe, sustainable and stress-free for schools offering surfacing certified to BS EN 1177, colour-fast and low maintenance, ready for years of active use.

What Is Resin Bound Paving and Traditional Paving?

Understanding resin bound vs traditional paving

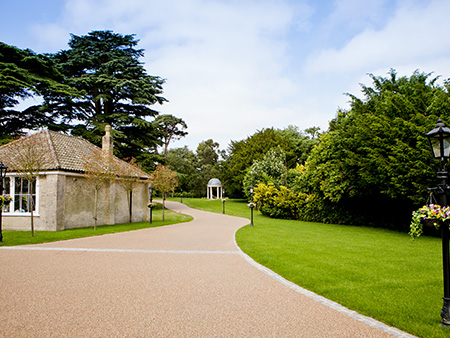

Resin bound paving is a modern surfacing solution where resin and aggregate stones are mixed and applied to create a smooth, permeable surface that is SuDS compliant, meaning water drains through naturally into the ground.

Traditional paving typically refers to block paving, stone, or concrete slabs set manually with joints. These surfaces are durable and familiar but can be more labour intensive and less permeable.

Knowing the differences up front helps you map costs, maintenance and performance expectations over the lifespan of your surface.

Resin Bound Paving in the UK: Key Benefits and Features

Choosing resin bound paving in UK means selecting a surface that is:

SuDS compliant – natural drainage reduces runoff and mitigates flood risks.
Low maintenance – unlike traditional paving, it has no joints for weeds to grow.
Durable and flexible – can handle pedestrian and light vehicle traffic without cracking.
Aesthetically versatile – various aggregate colours and finishes available.

Limegate’s LimeBound UV resin bound surfacing systems are engineered for high performance, tested to British standards for strength, slip resistance and weathering, and are installed by trained professionals to ensure long lasting results.

Resin Driveway Cost Comparison

How resin bound fares against traditional surfaces in cost terms

Evaluating resin driveway cost comparison means looking at both initial investment and ongoing expenses over time.

Surface Type	Installation and Labour	Maintenance
Resin Bound	Often quicker to install	Very low
Traditional Paving	Labour intensive	Requires resealing and weed control

While traditional paving may seem cheaper upfront, especially in basic forms, the resin bound option often wins on long term value due to reduced maintenance, less frequent repairs and improved surface performance.

Traditional Paving vs Resin Bound Cost

The true cost equation for businesses

Comparing traditional paving vs resin bound cost isn’t just about what you pay a contractor. Businesses must factor in:

Frequency of maintenance cycles
Downtime due to surface repairs
Drainage and regulatory compliance costs
Lifespan and surface performance

In some UK regions, block paving installation costs can vary widely because of materials and labour complexity, whereas resin bound systems offer more pricing consistency due to streamlined application.

In the medium to long term, many businesses find that the maintenance savings and performance benefits of resin bound surfaces outweigh the initial price differential.

Resin Bound vs Block Paving in the UK

Comparing performance, lifespan and sustainability

When weighing resin bound vs block paving in the UK:

Resin bound surfaces offer excellent permeability and low weed growth.
Block paving may have slightly lower upfront costs but typically requires resealing and more active maintenance.
Long term, resin bound tends to outperform.

Durability estimates from industry data show resin bound installations can last 15-20+ years with minimal upkeep, whereas traditional paving may need regular attention and resealing to stay looking and performing well.

Best Paving Materials for Businesses in the UK

What business owners should consider

Choosing the best paving materials for businesses in the UK means balancing budget with:

Traffic intensity – car parks and high footfall areas should favour durable, wear-resistant surfaces.
Drainage requirements – SuDS compliance is increasingly a regulatory expectation.
Maintenance resources – businesses often prefer lower ongoing costs.
Aesthetic and brand impact – first impressions matter.

Resin bound surfaces tick these boxes well for commercial environments and public spaces where reliability and performance are paramount.

Installation Considerations

Why professional installation matters

Resin bound systems require a high quality, well prepared sub-base to deliver performance. Poor base preparation can lead to failures such as cracking or water pooling. This is why we only work with trained installers experienced in both groundworks and surface application.

Limegate’s approach includes:

Detailed base preparation
SuDS compliant set up where required
Expert resin and aggregate mixing
Professional finish and quality assurance

This ensures your surface meets both your expectations and regulatory standards.

Cost Over Time: Lifetime Cost Comparison

Factor	Resin Bound	Traditional Paving
Initial Cost	Medium-High	Medium
Maintenance	Very Low	High
Resealing	Not Required	Required
Weed Control	None	Often Needed
Lifespan	15-20+ Years	15-20 Years
Drainage	SuDS compliant	Limited

This table highlights why many businesses find that resin bound surfacing offers a more cost-effective solution when viewed over a complete surface lifecycle.

Final Thoughts

Choosing the right surface for your business is a decision that impacts maintenance budgets, operational uptime, compliance and visual appeal. In the resin bound vs traditional paving comparison, resin bound surfacing often delivers superior long term value, better drainage performance and reduced maintenance costs that matter most to UK organisations in 2026.

Ready to explore the best solution for your site? Contact Limegate for a tailored cost analysis and expert guidance on the right surfacing choice for your business. Call us on 01959 546 208 or email info@limegate.co.uk.

Addressing Common Business Questions

Q: What is the difference between resin bound and traditional block paving?

A: Resin bound surfaces are seamless, permeable and low maintenance, while traditional block paving uses individual blocks with joints that require more upkeep and resealing.

Q: How do costs compare between resin bound and traditional paving in the UK?

A: Resin bound can cost slightly more upfront but often results in lower lifetime costs due to minimal maintenance and better drainage performance.

Q: Are resin bound surfaces SuDS compliant?

A: Yes, properly installed resin bound systems are naturally permeable and help manage surface water in line with Sustainable Drainage Systems requirements.

Q: How long do resin bound surfaces last compared to traditional paving?

A: With correct installation, resin bound surfaces can perform for 15-20+ years with minimal repairs, often outperforming traditional paving in longevity.

Q: What businesses benefit most from resin bound paving?

A: Commercial sites, public spaces, office HQs, leisure facilities and other high traffic areas benefit from its durability, low maintenance and SuDS compliance.

The post Resin Bound vs Traditional Paving: A 2026 Cost-Benefit Analysis for UK Businesses appeared first on Limegate Specialist Surfacing.

What Are The BS EN 1177 Requirements For School Playground Surfacing In 2026?

Steve — Fri, 19 Dec 2025 15:22:41 +0000

Every time we visit a school playground, we see children running, jumping, climbing, laughing and energy everywhere. But as exciting as playground time is, there’s a serious responsibility behind the surfaces they play on. In the UK, one key standard helps ensure safety underfoot: the BS EN 1177.

In this post, we’ll explain exactly what BS EN 1177 means for school playground surfacing, why it matters, what to check for, and how Limegate Specialist Surfacing helps schools meet and exceed those requirements.

If you’d like to discuss a project or get expert advice, call us on 01959 546 208 or email info@limegate.co.uk.

Understanding BS EN 1177: What It Is And Why It Matters

BS EN 1177 is the European and British standard for impact-absorbing playground surfacing, defining how surfacing materials are tested and measured to protect children from injuries when falling from playground equipment.

At its core, BS EN 1177 requires playground surfaces to undergo a standardised test to determine their Critical Fall Height (CFH), the maximum safe height from which a child can fall onto the surface without the risk of serious head injury (measured using Head Injury Criteria (HIC) tests).

If surfacing under equipment doesn’t meet the required CFH (based on equipment height and fall zones), that surface is not compliant and using it puts children at risk.

Key BS EN 1177 Requirements For School Playground Surfaces

Schools, nurseries, playground designers and managing bodies should consider the following when specifying or checking surfacing:

1. Impact-Absorbing Surface Where Falls Are Possible

Any playground equipment that allows a vertical fall over 0.6 metres or involves dynamic / forced movement (e.g. swings, seesaws, climbing frames) triggers the requirement for impact-absorbing surfacing under BS EN 1177.

Hard surfaces such as concrete, tarmac or bare asphalt are not permitted under or within the fall-zone for such equipment.

2. Certified Critical Fall Height (CFH) Test

The chosen surfacing system must have been tested under BS EN 1177’s testing regime (or equivalent) to establish a certified CFH.

The surfacing installation (depth/thickness, base layers) must match the CFH rating incorrect installation invalidates the CFH certification.

3. Entire Impact Zone Must Be Covered

The safe surfacing must cover the entire “use zone” or “fall zone” i.e. all areas where a child might land if they fall. This includes not just directly under the equipment but surrounding space.

There should be no sharp edges, protrusions or hard surfaces within this zone.

4. Long-Term Maintenance & Inspection

Surfacing must be regularly checked for wear, compaction or displacement especially in high-use environments such as schools. Failures in maintenance can reduce impact-attenuating performance.

If surfacing degrades (thins, cracks, compacts), it may no longer meet the CFH requirement and pose risk.

5. Accessibility & Inclusivity

Surfacing should be suitable for all children, including those using wheelchairs or mobility aids not just designed for able-bodied users.

Materials must avoid entrapments, sharp edges, and ensure accessible movement across the play area.

Suitable Playground Surfacing Options That Meet BS EN 1177

At Limegate, we offer multiple surfacing systems that are fully compatible with BS EN 1177 requirements combining safety, durability and aesthetics.

1. Wet Pour Rubber Surfacing

Our “Wet Pour Rubber Surfacing” system is a popular choice for schools, playgrounds and childcare settings. The rubber granules are bound with polyurethane resin and laid over an appropriate sub-base or SBR shockpad providing impact absorption, slip resistance, and longevity.

This system is ideal where CFH certification (fall protection) is required and offers flexibility in design (colours, shapes, zones), drainage and low maintenance perfect for school environments.

2. Rubber Mulch / EPDM SafePlay Systems

For lower-impact areas or where aesthetic flexibility and permeability matter (e.g. shaded play zones, creative schoolscapes), our “LimeRubber SafePlay” system provides a permeable, decorative, safe rubber surface using EPDM granules or rubber mulch installed over a shockpad or solid base depending on fall height.

3. Artificial Grass With Shock Pad (Where Appropriate)

For areas where dynamic play is minimal for example, quiet zones, sensory gardens, or toddler play areas synthetic turf with a suitable shock-absorbing base can be considered. However, it must be tested and meet BS EN 1177 CFH requirements for any fall-height involved. (Note: natural grass alone rarely meets requirements for equipment above 0.6 m.)

Why BS EN 1177 Compliance Is Crucial For Schools

Child safety: Properly certified surfacing significantly reduces the risk of head and serious injuries from falls. CFH-rated surfaces are tested for impact attenuation before use.

Legal & reputational protection: Non-compliant surfacing can expose schools to liability, costly claims or reputational damage. Many insurers also insist on recognised standards.

Longevity and lower maintenance: High-quality surfacing such as wet-pour rubber or bonded systems require minimal maintenance, drain properly and don’t need frequent topping up (unlike loose-fill materials).

All-weather & accessibility: Synthetic compliant surfacing performs well year-round, provides drainage, slip resistance, and supports accessibility for all users.

How Limegate Ensures BS EN 1177 Compliance — What We Do Differently

When you choose Limegate Specialist Surfacing for your school playground project, here’s how we ensure compliance and peace of mind:

We only install impact-absorbing surfacing systems that are tested and certified, with documented CFH ratings.

Our installation follows best practices: appropriate sub-base, shockpad where required, proper thickness and fall-zone coverage, in line with BS EN 1177 and industry guidance.

We offer a range of surfacing systems from wet-pour rubber to safer rubber-mulch EPDM, giving you flexibility depending on the age group and use case.

We build for sustainability and low maintenance, so surfacing remains safe and functional for years without constant topping up or repair.

We’re always available to advise schools on surfacing suitability, ongoing maintenance and safety inspections because compliance continues long after installation.

If you’re planning a new playground or resurfacing project, call us on 01959 546 208 or email info@limegate.co.uk we’ll help make it safe, compliant and long-lasting.

Conclusion: Safety, Compliance And Peace Of Mind

Ensuring that your school playground meets the requirements of BS EN 1177 is not just about ticking a box it’s about protecting children, reducing injury risk, and giving parents, staff and stakeholders confidence. As playground standards evolve and safety expectations rise, choosing a surfacing partner who understands both the standard and practical installation realities is vital.

At Limegate Specialist Surfacing, we combine expertise, certified surfacing solutions and a commitment to long-term durability providing schools with playground surfaces that meet BS EN 1177, look great, and require minimal maintenance.

If you’re planning a new playground build, refurbishment or surfacing upgrade or simply want to check whether your current surface is compliant, get in touch.

Call 01959 546 208 or email info@limegate.co.uk today. Let’s make sure playtime stays safe, fun and worry-free.

The post What Are The BS EN 1177 Requirements For School Playground Surfacing In 2026? appeared first on Limegate Specialist Surfacing.

What Are The Legal Considerations When Installing A Resin-Bound Driveway?

Steve — Thu, 27 Nov 2025 10:35:45 +0000

You’ve decided to upgrade your home or commercial property entrance with a stylish, durable surface. You’ve chosen a sleek new surface from Limegate, and our installation team has done a great job.

But then you start wondering: Do I need planning permission? Does installing a new surface comply with drainage and building regulations? That’s where legal aspects of a resin-bound driveway become essential, and we’re here to guide you through them.

If you’d like to discuss this further before starting your project, please call us on 01959 546 208 or email us at info@limegate.co.uk.

Our experts at Limegate believe great surfacing isn’t just about aesthetics but also compliance and peace of mind. Let’s get your driveway right from the start.

Understanding Resin Bound Surfacing, And Why Regulations Matter

Resin-bound surfacing is a durable, decorative paving system that creates a smooth, seamless finish by binding natural aggregates with a clear resin. Due to its permeability, this type of surface allows water to drain through the structure, thereby reducing standing water and helping to prevent flooding. It is also valued for being slip-resistant, low-maintenance, and long-lasting, making it an ideal choice for driveways, pathways, and commercial environments.

Adhering to regulations, especially those related to SuDS (Sustainable Drainage Systems), is essential to ensure the installation performs correctly, remains compliant with planning rules, and supports effective water management.

At Limegate, we offer specialist surfaces, including our fully permeable resin-bound surfacing system, which is slip-resistant, low-maintenance, and complies with SuDS (Sustainable Drainage Systems) when installed correctly.

When you talk about resin-bound driveway regulations, you’re looking at a combination of:

Planning policy (especially if you live in a conservation area or your property is listed)
Building regulations (including drainage and sub-base standards)
Environment & flood-risk considerations
Health & safety during installation

Getting these right means your investment is secure, your surface looks great, and you avoid potential problems down the line.

Planning Permission And The Role Of Local Authorities

Whether you need formal permission depends on several factors: the size of the driveway, your property type, and whether you’re in a protected zone. For example:

If you’re installing a front driveway at a house that’s not listed and not in a conservation area, often you’ll be covered by permitted development rights.
If your home is listed or located in a conservation area, or if the surface involves significant excavation or changes to drainage, you may need to consult with your local planning authority.
Because a correctly installed resin-bound driveway is permeable, it often presents fewer issues related to runoff compared with completely impermeable surfaces. That means compliance with resin-bound driveway regulations is easier when you choose a permeable system.
At Limegate, we handle large-scale commercial and heritage site jobs (see our case studies) and know how to support compliance and documentation.

The key takeaway: check with your local authorities if you are uncertain; however, a SuDS-compliant, permeable surface is a strong starting point.

Drainage & SuDS Compliance: Why The Base Matters

One of the most critical legal and technical elements is making sure your driveway installation meets drainage standards. For a resin-bound surface to function correctly, it must be set on a suitable sub-base (e.g., open-textured asphalt or no-fines concrete) that allows surface water to drain naturally, rather than pooling.

If not correctly designed, you may be in breach of drainage standards often captured in building regulations or site-specific conditions.

Key considerations include:

Ensuring the permeable surface is laid over a base that allows water infiltration.
Avoiding relocation or increasing surface water run-off onto neighbours’ or public drains.
Confirming that the system is described as compliant with or designed for SuDS (which many resin-bound systems are).

By choosing our resin-bound driveway surfacing service, you benefit from our expertise in both surfacing and groundworks, enabling you to achieve compliance and long-term performance.

Building Regulations, Sub-Base & Vehicle Load Considerations

Another set of requirements relates to structural performance and safety. Although driveways at domestic properties may often fall outside full building regulations, commercial or heavier-traffic installations most certainly will. Points to consider:

The sub-base should be correctly designed and constructed to avoid structural failure (subsidence, cracking) under traffic.
Load classification: If the driveway will accommodate vehicles (including heavy ones), you’ll need to ensure the surface and base are rated accordingly and installed to the correct specification.
We at Limegate have vast experience delivering surfacing in commercial settings (such as car parks, showrooms), so we understand the implications of heavier vehicles and can advise accordingly.

In short, ensuring you meet the proper structural standards supports both compliance and longevity of your driveway.

Environmental & Neighbourhood Impact – Rights, Responsibilities & Best Practice

It’s easy to forget the broader context: your new driveway should not adversely impact neighbours or the local environment. When thinking about resin-bound driveway regulations, consider these factors:

If your installation obstructs a public footway or creates glare or glare issues for neighbours, there may be local authority concerns.
Noise, dust and working hours during installation may be subject to local authority tolerances.
At Limegate, we place our health and safety policy at the forefront. Our operatives are trained and carry out all work in line with our ISO 14001-driven environmental commitment and site-safe procedures.
If you’re replacing a green or soft surface with paving, local planning policy might require you to consider surface water run-off and biodiversity factors. A permeable resin-bound system can be a strong argument in favour.

By working with a specialist surfacing contractor who is familiar with these issues, you reduce the risk of objections or post-installation problems.

Why Choosing A Specialist Contractor Makes Compliance Easier

Installing a high-quality surface is one thing; meeting all the relevant legal, technical and environmental regulations is another. At Limegate, we combine these in one service:

Our team comprises approved contractors with manufacturer-certified systems and is accredited by the relevant industry body.
We provide comprehensive groundworks support, including excavation, sub-base installation, manholes, soakaways, and drainage channels.
Our completed projects include high-profile sites, which demonstrate our experience, authority and ability to deliver to strict standards.

When you choose us, you’re choosing peace of mind that your driveway installation won’t just look good, but will meet the standards required today and in the future.

Conclusion: Make The Right Choice With Confidence

At Limegate, your driveway should be more than just a surface; it should be a well-engineered, compliant, and low-maintenance asset that enhances your property and stands the test of time. By understanding the legal framework surrounding resin-bound driveway regulations, you give yourself the best chance of a successful, hassle-free installation.

If you’d like to explore how we can assist you with our specialist resin-bound driveway surfacing, groundworks, drainage, or design services, please call us on 01959 546 208 or email us at info@limegate.co.uk.

Let’s make your project a smooth ride from start to finish.

The post What Are The Legal Considerations When Installing A Resin-Bound Driveway? appeared first on Limegate Specialist Surfacing.

10 Common Mistakes People Make With Resin Bonded Driveways

Steve — Thu, 20 Nov 2025 16:05:39 +0000

You have finally decided to upgrade your driveway, picturing a smooth, stylish finish that boosts your home’s kerb appeal. You’ve done your research, picked a beautiful aggregate, and maybe even watched a few DIY videos online.

But the reality? Without proper preparation and professional guidance, many homeowners end up with uneven surfaces, loose stones, or resin that fades far too quickly. A resin-bonded driveway can transform your property, but only if it’s installed correctly from the ground up.

At Limegate Specialist Surfacing, we’ve seen firsthand the most common pitfalls homeowners encounter. With over a decade of experience installing resin-bonded surfaces for homes and commercial properties across the UK, we’re here to help you avoid these mistakes and achieve a flawless finish.

If you’d like expert guidance, you can reach us on 01959 546 208 or info@limegate.co.uk.

A resin-bonded driveway can turn the look of your home, but even small mistakes can lead to long-term problems. At Limegate, we help you avoid common pitfalls and ensure a beautiful, durable finish every time.

The 10 Resin-Bonded Driveway Mistakes

Choosing The Wrong Aggregate Size

Many people underestimate the importance of selecting the correct stone aggregate for their resin-bonded surface. Using stones that are too large can make the surface uneven and unsafe, while wonderful stones may wear down quickly under foot or vehicle traffic. At Limegate, we carefully select aggregates that balance aesthetics with durability, ensuring a long-lasting, safe surface.

Skipping Surface Preparation

One of the biggest mistakes in resin-bonded driveways is failing to properly prepare the underlying surface. Resin needs a solid, clean base, typically concrete or asphalt, to adhere correctly. Dirt, oil, or loose debris can compromise adhesion, leading to loose stones or patchy areas.

Our team always prepares surfaces meticulously to prevent future issues. Learn more about our resin-bonded surfacing services here.

Poor Weather Conditions During Installation

Resin-bonded surfaces are sensitive to weather. Installing in wet or icy conditions can prevent proper curing, resulting in a weaker surface or an uneven finish. Ideally, installation should be scheduled during dry weather at temperatures recommended by the resin manufacturer. We monitor conditions closely before beginning any installation to ensure the best results.

Incorrect Resin-To-Aggregate Ratio

Mixing resin and aggregate incorrectly is a common mistake that can affect both durability and appearance. Too much resin can create a shiny, slippery surface, while too little can cause stones to come loose. Our professional teams are trained to strike the right balance, providing a surface that is both attractive and safe.

DIY Installation Without Experience

While DIY guides make resin-bonded driveways seem simple, this is often one of the most costly mistakes. Without experience, it’s easy to make errors in preparation, application, or curing, which can lead to uneven surfaces and a shorter lifespan.

Limegate’s experienced installers ensure a professional finish every time, as seen in projects such as Eton College, Berkshire, where we completed 1,000 square metres of flawless resin-bonded flooring.

Ignoring Drainage Needs

Water pooling is a problem that many overlook. Poor drainage can lead to surface erosion, moss growth, and a slippery finish. Resin-bonded surfaces need careful planning to manage water flow, particularly on driveways and access ramps. Our team considers Sustainable Drainage Systems (SuDS) compliance to make sure your surface handles water effectively.

Using Low-Quality Materials

Not all resins and aggregates are created equal. Cutting corners on materials may save money upfront, but it often leads to fading, chipping, and higher maintenance costs over time. At Limegate, we use only high-quality, manufacturer-approved resin systems to guarantee durability, colour retention, and performance.

Lack Of Maintenance Knowledge

Even low-maintenance surfaces like resin-bonded driveways require some care. Some homeowners neglect sweeping leaves, debris, and organic matter that can degrade the surface. With minimal upkeep, your driveway can last for many years. Our team provides clients with simple maintenance tips to preserve the finish and safety of their surfaces.

Underestimating Traffic Load

Resin-bonded surfaces are durable, but they need to be matched to the intended use. A driveway supporting heavy vehicles requires a stronger base and carefully selected aggregate. Overloading a standard surface is one of the most common mistakes we see in resin-bonded driveways. Limegate assesses traffic requirements before installation to avoid costly repairs later.

Not Hiring Experienced Professionals

The final mistake is thinking any installer can deliver a professional result. Resin-bonded surfaces require skill, attention to detail, and knowledge of industry best practices. Choosing experienced installers like Limegate ensures a long-lasting, attractive driveway that meets safety and quality standards.

Conclusion: Avoid Resin-Bonded Driveway Mistakes With Experts

A resin-bonded driveway can enhance your property’s appeal, safety, and value, but only if it’s installed correctly. By understanding these ten common mistakes and working with experienced professionals like Limegate Specialist Surfacing, you can enjoy a durable, low-maintenance surface for years to come.

If you’re considering a resin-bonded driveway for your home or commercial property, contact us today on 01959 546 208 or info@limegate.co.uk.

Let our team guide you through every step, from material selection to installation, ensuring a flawless, lasting finish.

Frequently Asked Questions About Resin-Bonded Driveways

How long does a resin-bonded driveway last?

With correct installation and minimal maintenance, a resin-bonded driveway can last 10–15 years or more.

Can resin-bonded surfaces be installed over existing driveways?

Yes, provided the existing surface is sound, clean, and adherable. This can save on excavation costs.

Is resin-bonded surfacing slip-resistant?

Yes. The aggregate provides excellent traction, making it ideal for both pedestrian and vehicular traffic.

How quickly can I use my driveway after installation?

Most resin-bonded driveways are ready for light use within 24 hours, though complete curing may take a few days depending on the weather.

Can I choose the colour of my resin-bonded driveway?

Absolutely. We offer a variety of natural, attractive aggregates to complement your home’s aesthetic.

The post 10 Common Mistakes People Make With Resin Bonded Driveways appeared first on Limegate Specialist Surfacing.

Resin Bound Patio Installation: What To Expect And How To Prepare

Steve — Thu, 25 Sep 2025 08:36:16 +0000

Resin bound patio installation continues to gain popularity among UK homeowners looking to create an attractive, practical, and long-lasting outdoor living space. At Limegate, we take pride in delivering expert guidance from initial planning to ongoing maintenance—a process designed to ensure your project is both rewarding and enduring.

Choosing the right patio surface is a big decision. We believe an informed approach results in better outcomes, so this blog will walk through what to expect, how to prepare, and how best to look after your new resin bound patio.

If you’re considering transforming your garden or driveway and want professional advice, reach out to our knowledgeable team by calling 01959 546 208 or emailing info@limegate.co.uk.

Give your outdoor space a fresh, lasting upgrade with a Limegate resin bound patio—combining elegant style, robust durability, and effortless maintenance. Discover the ideal solution for modern homes with surfaces designed to impress year after year.

Understanding Resin Bound Surfacing: Modern Advantages

Resin bound patios offer a host of practical benefits over traditional paving. By combining cleaned, dried aggregates with UV-stable resin, we deliver surfaces that are beautifully smooth, highly durable, and permeable for natural drainage. These systems are SuDS-compliant, ensuring water doesn’t pool and helping reduce slip hazards—ideal for unpredictable UK weather.

Our installation is tailored to meet your needs:

Choose from a wide variety of colours and finishes
Enjoy impressive resistance to UV fading, heavy foot traffic, and weather extremes
Benefit from low maintenance—simple sweeping and the occasional pressure wash
Rest assured of excellent slip resistance for safety in family gardens

Explore our full range of aggregates, colours, and technical options on our Resin Bound Surfacing page—where inspiration meets expertise.

The Resin Bound Patio Installation Journey: Step-By-Step

Every Limegate patio installation follows a trusted process ensuring accuracy, performance, and visual harmony. Here’s what you can expect:

1. Initial Consultation & Planning

Our team starts by assessing your outdoor area and discussing aesthetic goals, usage, and technical features. We’ll review design ideas including complementary borders, lighting integrations, and bespoke layouts—working closely with each homeowner to achieve a unique but practical result.

2. Professional Base Preparation

Success begins from the ground up. An appropriate, stable, and permeable base is critical to ensure the resin bound surface performs and lasts. The usual options are concrete or permeable tarmac, and the base is assessed for cracks, strength, and drainage. Unsuitable surfaces such as paving slabs or block paving are typically removed or replaced.

We clear debris, repair imperfections, and ensure the substrate is structurally sound. Our technical guide, “Preparing For A Resin Surface: What Base Is Needed” provides in-depth tips and recommendations for optimal substrate choice, ensuring your patio is built to last.

3. Resin Mixing And Laying

Through the use of professional forced-action mixers, aggregates and resin are thoroughly blended to a consistent finish. The mixture is then hand trowelled by our skilled installers to create a seamless, visually appealing surface that’s free from joints and loose stones.

Care is taken to achieve both structural integrity and design excellence. Unique touches such as decorative borders, custom shapes, or embedded features are all possible with resin bound paving.

4. Curing And Finishing

Once laid, your new patio typically cures within 24 to 48 hours, depending on the temperature and humidity. After curing, the surface is ready for light foot traffic, with full durability achieved after two weeks. We finish with detailed checks on quality, edge neatness, and conformity to technical specifications.

How To Prepare For Your Resin Bound Patio Installation

Good preparation ensures a smooth, hassle-free installation. As a homeowner, you can help by:

Clearing away garden furniture, pots, and any other obstacles from the work area
Allowing unobstructed access to the site for installers and equipment
Discussing design features, borders, or add-ons in advance so these can be factored into planning and costs
Reviewing relevant guides and technical sheets to understand substrate compatibility; see our comprehensive “Preparing For A Resin Surface” for detailed steps

If you have specific requirements, Limegate’s expert team is always on hand to advise—ensuring expectations are met and the patio fits your lifestyle. Contact us today.

CONTACT Limegate

The form can be filled in the actual website url.

Maintenance: Looking After Your Resin Bound Patio

Resin bound patios require very little maintenance compared to other surfaces. To keep the area looking its best:

Sweep regularly to remove leaves and debris
Occasionally wash down with a garden hose or pressure washer on a low setting
Avoid using harsh chemicals which can degrade the finish

To keep your patio in top condition, we recommend reading our “Resin Bound Surfacing Maintenance” guide for tips on maximising durability and aesthetics.

Frequently Asked Questions

1. Can resin bound patios be laid over any surface?

The best results come from laying on concrete or permeable tarmac; old paving slabs and block paving are not generally compatible and should be replaced for a stable and lasting finish.

2. How long does the installation process take?

Most patios are installed in one to two days, with full curing within 48 hours—ready for regular garden use shortly after.

3. What kind of maintenance should I expect?

Basic sweeping and occasional gentle washing are all that’s needed. No regular sealing or weed treatment is required.

4. Is the installation affected by weather?

Installation should be planned for dry, mild days. Excess humidity or rain can hinder curing—our team will discuss the best seasonal timing for your location.

5. Can resin bound surfacing be used for driveways and paths?

Absolutely—these surfaces are ideal for patios, driveways, garden paths, and other outdoor areas where a seamless, long-lasting finish is desired.

Conclusion: Create The Perfect Patio With Limegate

A Limegate resin bound patio installation offers lasting style, safety, and usability for modern UK homes. From the initial consultation to expert aftercare, our team combines technical expertise with thoughtful design to deliver truly outstanding results.

Ready to transform your outdoor space? Call us today on 01959 546 208 or email info@limegate.co.uk for tailored guidance, a no-obligation quote, or more information on the Limegate difference.

The post Resin Bound Patio Installation: What To Expect And How To Prepare appeared first on Limegate Specialist Surfacing.

Transform Your Patio With Resin Bonded Surface

Steve — Thu, 14 Aug 2025 21:28:46 +0000

A resin-bonded patio can completely change how your outdoor space looks and feels. Whether you’re planning a small garden retreat or a large entertainment area, resin-bonded surfacing offers the perfect combination of style, durability, and low maintenance.

Unlike traditional paving options, a resin-bonded patio offers a seamless, contemporary finish that not only boosts curb appeal but also stands the test of time. It’s no wonder more homeowners are turning to this surfacing option for their patio makeover.

Suppose you’re looking to upgrade your existing patio or plan a fresh installation. In that case, Limegate’s high-quality resin solutions offer long-lasting, visually appealing results that will elevate your outdoor living space. From design to installation, their expert team ensures a flawless finish that fits your style and budget.

Contact us to get started on your dream patio today.

At Limegate, we believe a resin-bonded patio isn't just a surface – it's an upgrade to your entire outdoor experience. With our expert installation and premium materials, we help homeowners create beautiful, durable patios that last for years.

Why Choose Resin-Bonded Surfacing For Your Patio?

Resin-bonded surfacing is gaining popularity for patio renovation projects thanks to its stunning appearance and resilient properties. Here’s why it’s the go-to option for modern homeowners:

1. Aesthetic appeal

This surfacing method creates the look of natural stone without the high cost or maintenance. Available in a wide range of colours and aggregate blends, resin-bonded patios allow you to tailor your outdoor area to complement your home’s architecture and landscaping.

2. Slip-resistant surface

Safety is a significant concern for outdoor flooring. Resin-bonded paving offers excellent slip resistance, making it an ideal choice for non-slip patios, especially in rainy UK weather.

3. Quick Installation

The resin-bonded patio installation process is relatively fast and doesn’t require excavation. It can often be applied over existing concrete or tarmac, reducing labour costs and mess.

4. Long-lasting durability

Thanks to its hard-wearing surface, this system is perfect for durable patio surfaces. It can withstand heavy foot traffic, changing weather, and regular use without cracking or fading.

How Resin-Bonded Surfacing Transforms Your Patio

Upgrading to resin-bonded surfacing does more than just refresh your patio’s appearance. It creates a functional, low-maintenance, and inviting outdoor space.

1. Boosts Property Value

Whether you’re selling soon or simply investing in your home, a modern patio surface adds tangible value. It provides a polished look that prospective buyers or guests will appreciate.

2. Enhances Outdoor Living

From garden parties to evening lounging, a beautiful and practical patio increases your usable living space. Resin-bonded patios are ideal for furniture placement and are easy to clean — just a quick sweep or pressure wash is enough.

3. Minimises Maintenance

No need to worry about weeding between slabs or dealing with shifting stones. A resin-bonded surface remains smooth and intact for years with minimal upkeep.

Understanding Resin-Bonded Patio Cost

Wondering about the cost of a resin-bonded patio? Prices can vary depending on several factors:

Size of the area
Type and colour of aggregate
base preparation required
Location and accessibility

Generally, the cost is competitive with other high-end paving options. However, considering the lifespan and low maintenance, it often proves more cost-effective in the long run. For a personalised quote, it’s best to contact us.

Comparing Resin Bonded Vs Resin Bound Surfacing

Although similar in name, resin-bonded and resin-bound surfacing are different:

Resin Bonded: Stones are scattered onto a resin layer, creating a textured, non-slip finish. It’s ideal for decorative surfaces where grip is essential.
Resin Bound: Stones are mixed with resin before being laid, producing a smoother, more porous surface that’s SUDS-compliant.

If you’re unsure which is right for your needs, consider reading our detailed guide: Choose Resin Bound Driveway.

Steps In A Resin-Bonded Patio Installation

Thinking of getting your patio done? Here’s what the process typically involves:

Site Inspection – Assess the existing base and surrounding conditions.
Preparation – Clean the surface and repair any cracks or holes.
Priming – Apply resin primer to ensure strong adhesion.
Resin Application – Spread resin evenly across the base.
Aggregate Broadcast – Scatter chosen stones over the wet resin.
Curing – Allow surface to set, typically within a few hours.

Professional installation ensures each step is handled with care. For trusted results, consider specialists in resin-bonded patios like Limegate.

CONTACT Limegate

The form can be filled in the actual website url.

Finding The Best Resin-Bonded Patio For Your Home

Choosing the best resin-bonded patio depends on your style, lifestyle needs, and budget. Some tips:

Go for natural stone blends for a timeless look.
Choose colours that complement your house and garden features.
Prioritise safety with anti-slip finishes.
Always opt for UV-stable resin to prevent colour fading.

If you’re in the area, don’t forget to explore Resin Driveways in Essex for further inspiration and services.

Is A Resin-Bonded Patio Right For You?

Still on the fence? Resin-bonded patios are especially ideal if:

You want a decorative, natural-looking finish
You need a quick patio makeover with minimal disruption
Slip resistance is important for your household
You want a low-maintenance outdoor flooring solution

It’s one of the most reliable choices for patio renovation in both traditional and contemporary homes.

Final Thoughts

From timeless aesthetics to practical performance, there are countless reasons to transform your patio with resin-bonded surfacing. It’s a durable, visually appealing choice that offers long-term value and minimal upkeep — perfect for today’s modern lifestyle.

Whether you’re planning a complete patio renovation or a simple refresh, Limegate delivers expert solutions tailored to your needs. Backed by years of experience, quality materials, and attention to detail, we help you bring your vision to life.

Contact us for a free consultation.

The post Transform Your Patio With Resin Bonded Surface appeared first on Limegate Specialist Surfacing.
